Industrial Axial Flow Fan

Industrial Axial Flow Fan

5000.00 - 500000.00 INR/Unit

Product Details:

  • Product Type Other
  • Power Mode AC
  • Blade Material Aluminum Alloy
  • Warranty 1 year
  • Supply Ability : 200 Unit Per Month
  • Click to view more
X

Price And Quantity

  • 1 Unit
  • 5000.00 - 500000.00 INR/Unit

Product Specifications

  • Other
  • 1 year
  • AC
  • Aluminum Alloy

Trade Information

  • 200 Unit Per Month
  • 4-6 Week
  • Contact us for information regarding our sample policy
  • As per requirement
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

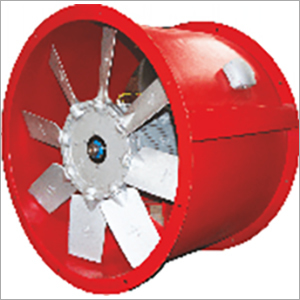

An Axial Flow Fan draws the air into it and discharge it in the same axial direction, rotating in a round section of duct, to exhaust hot and / or contaminated air from a process or system. HUMIDIN's Axial Flow Fans can be direct driven with the impeller mounted directly on the motor shaft or can be built driven with the impeller mounted on a separate fan shaft and driven by the motor through bells and sheaves. Axial Flow Fans are ideals for moving large volume of air at low pressures. HUMIDIN's Axial Flow Fan have adjustable pitch Axial Fans statically and dynamically balanced having wide range of applications in various industries through out the world.
Fans are certified for 'Sound & Air Performance' by AMCA.

DISCERNIBLE FEATURES:
Fan Size(Dia): 315 mm to 2000 mm
Flow rates up to 320000 cmh
Pressures up to 1800 Pa

APPLICATIONS
Used in industry for providing general ventilation, fume extraction and removal of hot spots. HUMIDIN offers a most economical and efficient installation for industry such as Thermal Power Stations, Fertilizers, Heavy engineering, Chemical, Textile, Food general, Paper, Sugar and Pharmaceuticals etc.

SPECIAL APPLICATION: Axial Flow Fans are also available for Fire Application for the following range:
250 degree Celsius for 2 hrs
300 degree Celsius for 1 hr
300 degree Celsius for 2 hrs



A. C. HUMIDIN AIR SYSTEMS PRIVATE LIMITED
